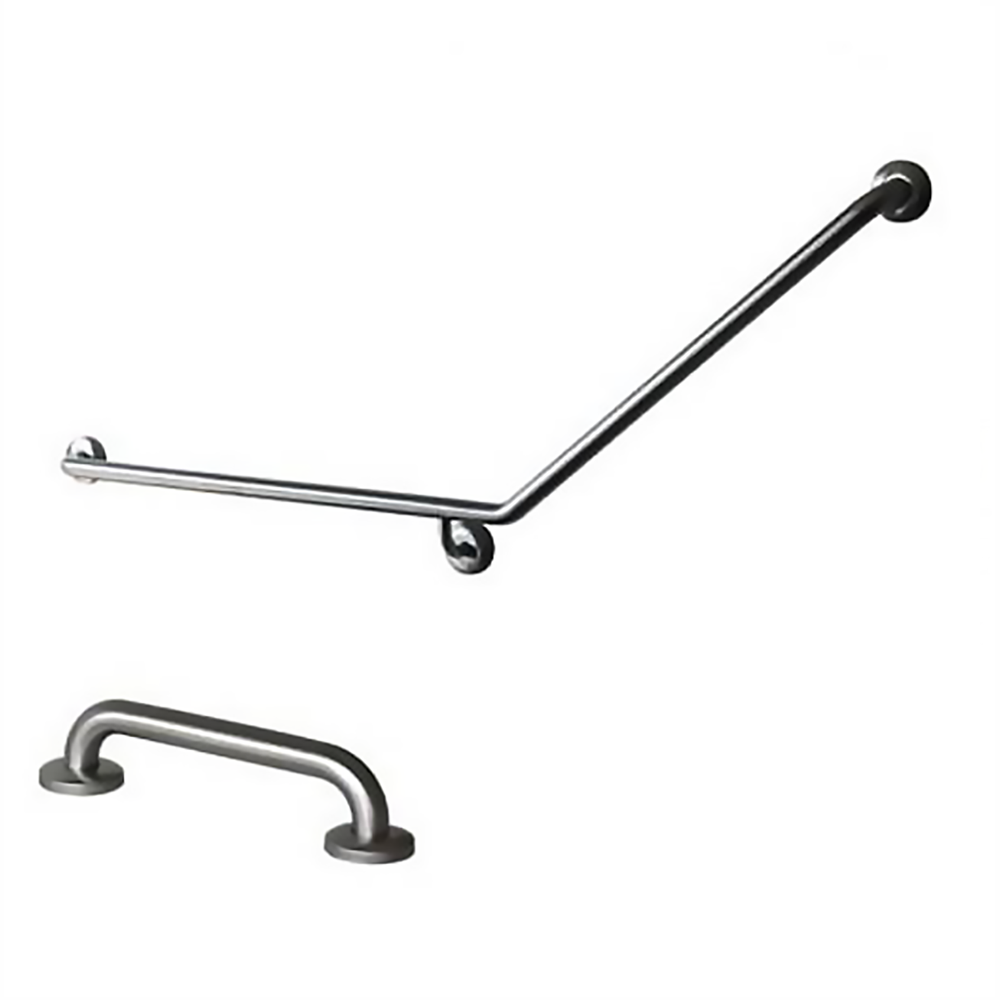

• Fabricated of grade 304 stainless steel
• 840mm x 700mm + 300mm straight rail
• Concealed flanges
• Two piece set for exposed cisterns
• Main piece bent 40 degree angle
• 300mm straight grab rail included
• Fully welded construction finished in satin stainless steel finish to promote durability and reliability
• Designed for the safety, security and convenience of the physically disabled
• Strong Ø75 fixing flanges
• Easy to install on most building surfaces
• Grab Rails provide flush mounting flanges which are fully welded to the tube ends
• This results in a single structural unit that is designed to give maximum
• Strength, security and user confidence to support greater loads
• Attractive stainless steel cover plates to conceal the flange and fixings

Recommended Installation Height:
To comply with Australian Standards AS 1428.1, grab rails must be fastened a minimum distance of 800mm from the floor, with 600mm of clear space above the rail and to withstand a force of 1100N at any point from any direction.
